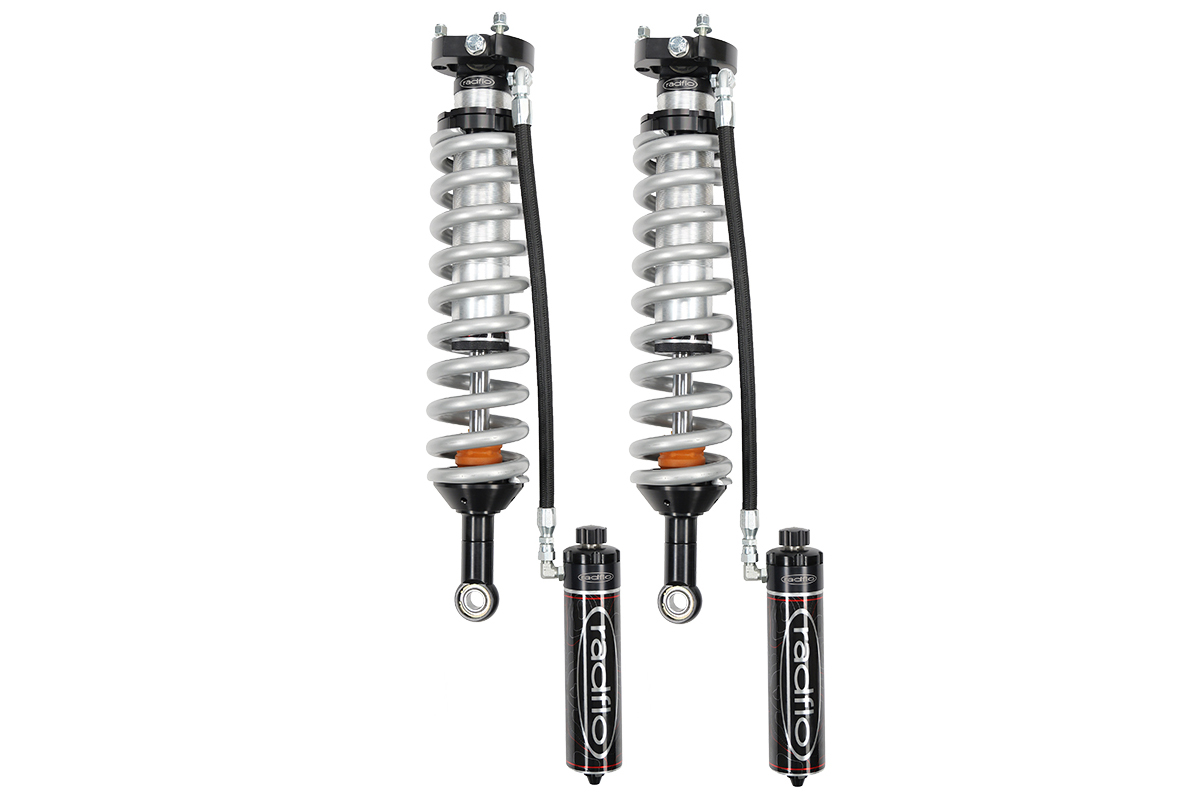

Works DRT Series Internal Bypass 2.5 Inch Inch Coilover Remote Reservoir 18 Inch Travel With Adjuster Radflo
SKU
6CV-006-9A
Price
$1,205.00

    This Shock Absorber is built to support stable handling and a controlled ride, helping your vehicle stay composed on and off road.

    Proprietary Rst Dynamic Ride technology Dampers provide both Velocity and position-sensitive damping in a single unit, with a progressive ramp-up for comfort and ride quality while also increasing control for bottom and top-out events. This Alloys the vehicle to flowt over small bumps and chatter while maintaining that bottomless feeling, even when going fast through the big stuff.

    External bypass performance in a single smooth-body or coil-over unit provides race truck level control and confidence, no matter your application. Custom Adjustments Custom Spec - Main Piston Valving, Compression and Rebound High/lo'-Speed Compression Adjuster Custom Spec - Internal Bypass (Drt), Compression and Rebound Compression Compression Ride Zone This zone controls the amount of bypass initially introduced on compression and the rate at which the suspension compresses.

    This is ideally the middle of the travel, where the piston sits at ride height +/- a certain percentage. While in the Ride Zone, the oil can bypass the main piston through the proprietary Drt valves, generating minimal high-speed damping.

    Features and Benefits:

    • Built for reliable use as a shock absorber option
    • Designed for a clean, service-friendly installation
    • Helps support consistent performance over time
    Bearings
    FK Bearings Heat-treated steel spherical bearings, PTFE-lined
    Body Material
    SSID Alloy Steel
    Body Style
    SSID Alloy Steel Tube
    Collapsed Length
    28.46
    Diameter
    2.5 Inch
    Extended Length
    46.46
    Oil
    RST Synthetic Foam Resistant High Temp Suspension Fluid
    Piston
    2.0 6061 T6 Billet Aluminum RST HiFloRace Piston (Type II Hard Anodized)
    Reservoir Type
    Remote Reservoir
    Rod
    Stainless Steel
    Rod Finish
    Mirror Polished Chrome Plated
    Rod Guide Finish
    PTFE Coating
    Rod Material
    Machined Bronze
    Seal
    3 Stage Redundant Seal Cap w/Mechanical Scraper - (NBR or Viton)*
    Shaft Size
    7/8 Inch 17-4PH Stainless Stee
    Sold As
    Kit
    Style
    Universal
    Valving
    Tunable, Velocity-sensitive valve shims
    CALIFORNIA WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
    Brand
    Radflo
    Category
    Shock Absorber
    Finish
    Zinc Plated w/Clear Coat
    Material
    SSID Steel
    Series
    Works DRT
    Vehicle Type
    Jeep
    Truck/SUV
    Country of Origin
    USA
    Mount
    Universal Spherical Bearing And Hardware
    Universal
    Yes
